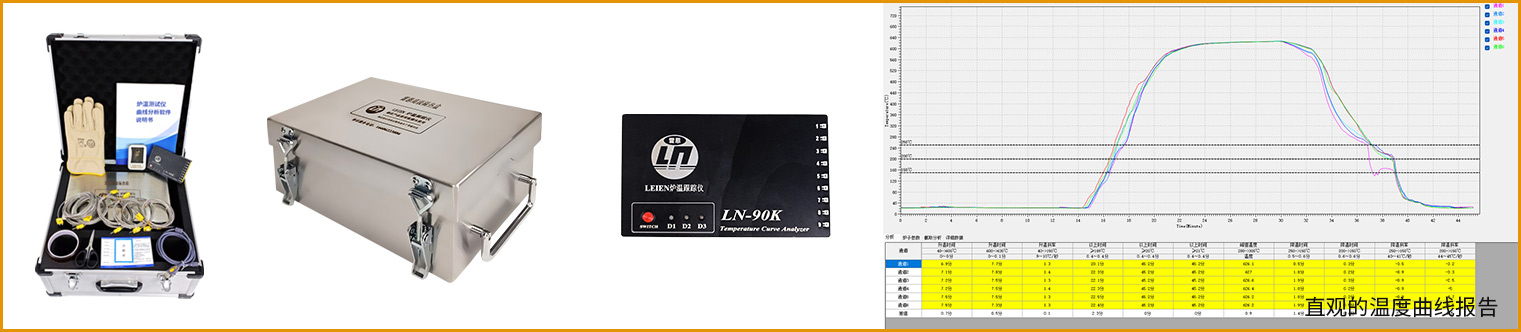

Aluminum Alloy Furnace Temperature Tester
（Internet terms: Furnace Temperature Tester / Furnace Temperature Tracker / Furnace Temperature Meter / Furnace Temperature Profiler）
Suzhou LEIEN Testing Instruments Co., Ltd. is a professional benchmark enterprise in the field of furnace temperature testing.Adhering to the core philosophy of Efficiency & Professionalism, Intelligence & Durability, Ease of Use, and Reasonable Pricing, the company is mainly engaged in the R&D, production, sales and service of the full range of high-performance LEIEN brand products, including furnace temperature trackers, furnace temperature testers, online furnace temperature monitoring systems, high-temperature thermal insulation boxes, and furnace temperature uniformity testing services.
With proprietary core technologies, LEIEN furnace temperature trackers have served more than 10,000 customers worldwide.They have won unanimous recognition from the industry for their stable performance and reliable quality.At present, product sales maintain rapid growth, with a repurchase rate exceeding 75% and an annual sales growth rate of over 30%, while our technical strength and market influence are steadily improving.
LEIEN furnace temperature tracker is a high-precision, high-stability product for furnace temperature testing and recording, filling a gap in the domestic temperature acquisition industry.It is specially designed for temperature profiling in the brazing process of heat exchangers, automotive water tanks, radiators and other components.
The high-temperature profiling system of the LEIEN furnace temperature tracker is equipped with a powerful software analysis system, which can store the collected temperature data.The host computer software can synchronously analyze and process temperature parameters together with length, time, product functions and other indicators.
The instrument can enter the high-temperature furnace together with the products to carry out comprehensive temperature profiling, ensuring accurate and reliable temperature data throughout the whole measurement process.Through full-process temperature monitoring, it helps improve quality and productivity, reduce downtime, optimize production technology, and calibrate the temperature control system of high-temperature furnaces.
Applications:Automotive radiators, condensers, evaporators, new energy & energy storage water cooling plates, aluminum brazing.
Recommended Model Selection
Recommended High‑temperature Insulation Box
👉Ensure reliable temperature curve data for your brazing process.👈
**Technical Parameters & Model Selection**
Multiple models available
name | Aluminum Alloy Furnace Temperature Tester | Transmission Method | Wireless real-time data transmission |
Recommended Models | LN-90K | MainUnit Temperature Resistance | 100℃ |
Multi-channel optional | 4、6、8、9、10、12... | Instrument Measuring Range | -200℃-1370℃ |
Thermal Insulation Device Performance | 700℃60min; 700℃120min; 800℃60min... | Voltage | DC3.7V-DC4.2V |
Sampling Rate | 0.05-600s | Battery Type | Explosion-proof lithium battery |
Resolution | 0.1℃ | **Battery Capacity** | 1200mA/2400mA |
Measurement Accuracy | ±0.3℃ | Instrument Power Consumption | 12nAh |
Continuous Testing | 16times | Data Reading | USB |
Memory Capacity | Continuous recording of 86,00000 data points | Probe Type | K/N/S/B/R/J/T/E |
Start Mode | Key start / Delay start / Temperature start | Host Dimensions | 138*95*20mm★ |
**Insulation Box Selection**
Item | Insulation Device Selection | Corresponding Performance | Weight | Volume and Dimensions |
Standard Selection | WT-700-1h WT-700-2h | 700℃1hour 700℃2hours | 10.8KG 13.8KG | 365*235*160mm 365x255x180mm |
Insulation Materials | New Aerospace Nano Thermal Insulation Materials | |||
Special Customization | ★-100-1300°C，1-50hours，Performance Optional, Size Customizable★ | |||
**Thermocouple Selection**
| Type Designation | Temperature Range | Length | Picture |
|---|---|---|---|
| Type K（Recommendation） | -200~1370℃ | Customizable |  |
| Type N | -200~1300℃ | ||
| Type S | -50~1768℃ | ||
| Type T | -200~350℃ | ||
| Type R | -50~1760℃ | ||
| Type E | -270~1000℃ | ||
| Type J | -200~800℃ |
**Working Test Site**
LEIEN Furnace Temperature Trackers are widely used, covering a full range of processes and industries including coating & powder baking, non-stick coating curing, non-stick cookware manufacturing, metal heat treatment, aluminum wheel heat treatment, brazing, enameling, SMT, semiconductor production, wave soldering & reflow soldering, Dacromet treatment, ink screen printing, pharmaceutical and food processing, lithium battery production, glass and ceramic manufacturing, photovoltaic manufacturing, display screen production, iron and steel smelting, etc. They help ensure compliance and risk avoidance, provide "plug-and-play, data-traceable" services, and meet the precise temperature measurement requirements of different fields.
