LEIEN Powder Coating Furnace Temperature Tester
（Furnace Tester, Furnace Tracker, Furnace Meter, Furnace Tracer）

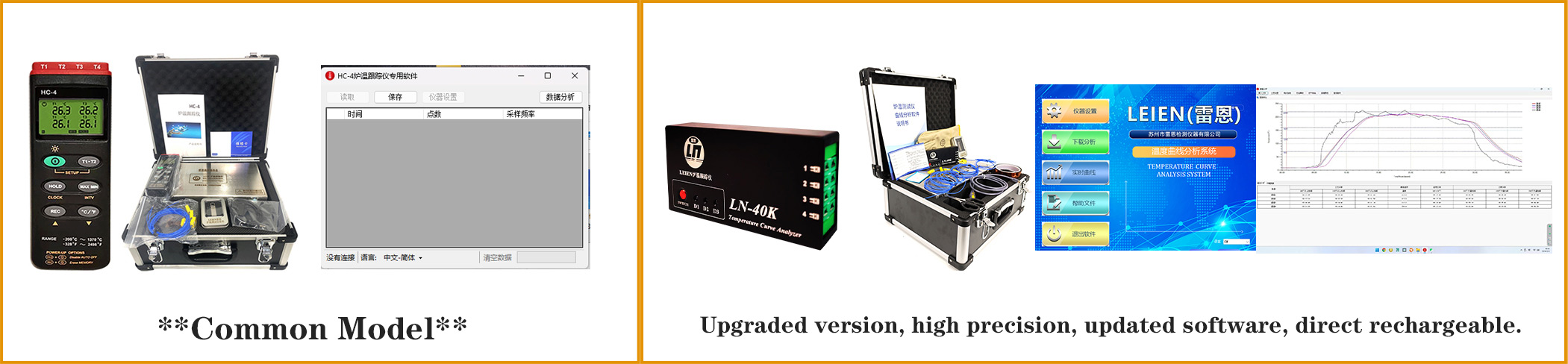

LEIEN Furnace Temperature Tracker is a simple and efficient temperature curve testing system for powder coating, automotive parts, painting, baking, electro-coating and powder curing. Available in 4/6/8/9/12 channels, the system runs through high-temperature furnaces with products to precisely monitor temperature, verify curing quality, optimize production processes and generate professional temperature curve reports.
*Applications:Automotive parts, furniture, plastic parts, vacuum flasks, rotor varnish dipping, electro-coating and powder coating.
*Model Options:Instruments: LN-40K, LN-60K, LN-80K, LN-90K Insulation Box: WT-300 (heat-resistant up to 300°C)
👉Provides efficient temperature curve data to support your powder coating and baking processes.👈
Technical Parameters and Selection
name | Powder Coating Furnace Temperature Tester | Transmission Method | Wireless real-time data transmission |
Recommended Models | LN-40K | MainUnit Temperature Resistance | 100℃ |
Multi-channel optional | 4、6、8、9、10、12.. | Instrument Measuring Range | -200℃-1370℃ |
Thermal Insulation Device Performance | 300℃，1hour 300℃，2hours ... | Working Voltage | DC3.7V-DC4.2V |
Sampling Rate | 0.05-600S | Battery Type | Explosion-proof lithium battery |
Resolution | 0.1℃ | Battery Capacity | 1200mA |
Measurement Accuracy | ±0.3℃ | Instrument Power Consumption | 12nAh |
Continuous Testing | 16times | Data Reading | USB |
Memory Capacity | Continuous recording of 86,00000 data points | Probe Type | K/N/S/B/R/J/T/E |
Start Mode | Key start / Delay start / Temperature start | Host Dimensions | 138*95*20mm |
**Insulation Box Selection**
Item | Insulation Device Selection | Corresponding Performance | Weight | Volume and Dimensions |
Standard Selection | WT-300-1h WT-300-2h WT-500-1h | 300℃，1h 300℃，2h 500℃，1h | / | 320*165*115mm |
Insulation Materials | New Aerospace Nano Thermal Insulation Materials | |||
Special Customization | ★-100-1300°C，1-50hours，Performance Optional, Size Customizable★ | |||
**Thermocouple Selection**
| Type Designation | Temperature Range | Length | Picture |
|---|---|---|---|
| Type K（Recommendation） | -200~1370℃ | Customizable |  |
| Type N | -200~1300℃ | ||
| Type S | -50~1768℃ | ||
| Type T | -200~350℃ | ||
| Type R | -50~1760℃ | ||
| Type E | -270~1000℃ | ||
| Type J | -200~800℃ |
**Working Test Site**
LEIEN Furnace Temperature Tracker is widely used across various industries and processes, including coating and powder baking, non-stick coating curing, non-stick cookware manufacturing, metal heat treatment, aluminum wheel heat treatment, brazing, porcelain, SMT, semiconductor production, wave soldering and reflow soldering, Dacromet treatment, ink screen printing, pharmaceutical and food processing, lithium battery production, glass and ceramic manufacturing, photovoltaic manufacturing, display screen production, iron and steel smelting, etc. It helps ensure compliance and risk avoidance, provides "plug-and-play, traceable data" services, and meets the precise temperature measurement requirements of different fields.
