Glass annealing furnace temperature tracker
（Furnace Tester, Furnace Tracker, Furnace Meter, Furnace Tracer）
LEIEN Furnace Temperature Tracker – high-precision, stable furnace temperature testing & recording device, filling the domestic gap in temperature acquisition. Suitable for glass annealing, shaping, melting, hot bending, coating, screen printing, etc., it conducts comprehensive temperature profiling with products in high-temperature furnaces, generates traceable certification reports, optimizes production processes, and calibrates furnace temperature control. Applied to pharmaceutical glassware, automotive glass, tempered glass, food glass containers, etc.
LEIEN High-Precision Furnace Temperature Tracker for Glass Annealing & Coating
Stable Furnace Temperature Testing Device – LEIEN Tracker for Glass Products
LEIEN Furnace Temperature Recorder with Traceable Curve for Tempered Glass/Automotive Glass

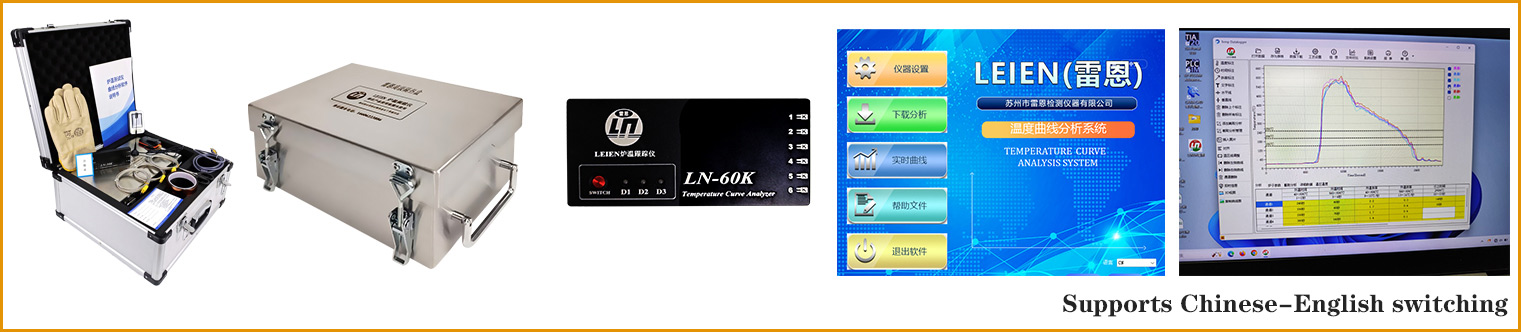

Recommended instrument models: 6-channel (LN-60K), 8-channel (LN-80K), 9-channel (LN-90K); Recommended insulation box model: WT-800 (withstands temperature up to 800°C / 1472°F)
👉 Provide stable and reliable temperature curve data support.👈
Technical Parameters and Selection
name | LEIEN Glass annealing furnace temperature tracker | Transmission Method | Wireless real-time data transmission |
Recommended Models | LN-60K | MainUnit Temperature Resistance | 100℃ |
Multi-channel optional | 4、6、8、9、10、12.. | Instrument Measuring Range | -200℃-1370℃ |
Thermal Insulation Device Performance | 700℃60min; 800℃30min; 800℃60min... | DC3.7V-DC4.2V | |
Sampling Rate | 0.05-600S | Battery Type | Explosion-proof lithium battery |
Resolution | 0.1℃ | Battery Capacity | 1200mA |
Measurement Accuracy | ±0.3℃ | Instrument Power Consumption | 12nAh |
Continuous Testing | 16times | Data Reading | USB |
Memory Capacity | Continuous recording of 86,00000 data points | Probe Type | K/N/S/B/R/J/T/E |
Start Mode | Key start / Delay start / Temperature start | Host Dimensions | 138*95*20mm★ |
**Insulation Box Selection**
Item | Insulation Device Selection | Corresponding Performance | Weight | Volume and Dimensions |
Standard Selection | WT-700-60 WT-800-60 WT-800-30 | 700℃60min 800℃60min 800℃30min | 10KG | 368*235*160mm |
Insulation Materials | New Aerospace Nano Thermal Insulation Materials | |||
Special Customization | ★-100-1300°C，1-50hours，Performance Optional, Size Customizable★ | |||
**Thermocouple Selection**
| Type Designation | Temperature Range | Length | Picture |
|---|---|---|---|
| Type K（Recommendation） | -200~1370℃ | Customizable |  |
| Type N | -200~1300℃ | ||
| Type S | -50~1768℃ | ||
| Type T | -200~350℃ | ||
| Type R | -50~1760℃ | ||
| Type E | -270~1000℃ | ||
| Type J | -200~800℃ |
**Working Test Site**
LEIEN Furnace Temperature Tracker is widely used across various industries and processes, including coating and powder baking, non-stick coating curing, non-stick cookware manufacturing, metal heat treatment, aluminum wheel heat treatment, brazing, porcelain, SMT, semiconductor production, wave soldering and reflow soldering, Dacromet treatment, ink screen printing, pharmaceutical and food processing, lithium battery production, glass and ceramic manufacturing, photovoltaic manufacturing, display screen production, iron and steel smelting, etc. It helps ensure compliance and risk avoidance, provides "plug-and-play, traceable data" services, and meets the precise temperature measurement requirements of different fields.
